- Model: WR38C / WR38T / TRU38C
可用的选项
Click: Order Option " Customize Wheelset ", and choose the hub and spokes, you will find the price for 1 pair complete wheelset.
Rim Shape
T700 Normal Weight Version: 100% Toray T700 Carbon Fiber.
T800 LightWeight Version: Mix 70% Toray T700 and 30% T800 Carbon Fiber.
Ultralight Version: 100% T800 Carbon Fiber. Rider Weight Limited 90kg, UD Paintless Weave Only. Rim Brake Version Weight Will Incrase by 10g.
Superlight T1000 Version: Mix 70% Toray T800 and 30% T1000 Carbon Fiber. No Rider Weight Limited, UD Paintless Weave Only.Rim Brake Version Weight Will Increase by 10g.
Note: Ultralight / Superlight weight is for UD Paintless only, 3K/12K/Marble weight increases 10 g- 15 g .
Note : If you want make Inner Nipple Wheel Must choose Have Rim Groove Hole
注：无轮圈槽孔，轮圈无须贴胶带，可减轻轮组重量。
If you want make Inner Nipple Wheel Must choose Have Rim Groove Hole
“A” 位于阀孔对面
Custom Logo
Please contact with us to check the design and cost [email protected]
"FLASH" Logo
"CarbonBikeKits" Valve sticker only
Related
产品规格

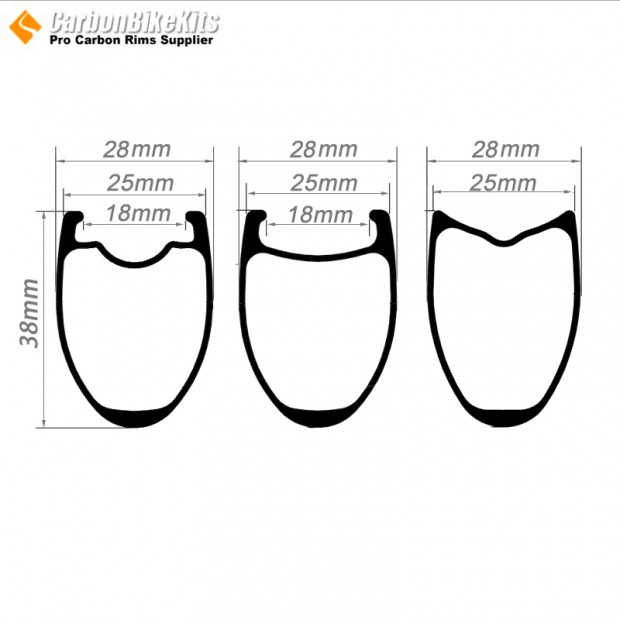

| Rim | |
| 材 料 | Toray Carbon T700 / T800 |
| Outer Width | 25mm |
| Hight | 38mm |
| ERD | 563mm |
| Clincher | |
| Clincher Model No. | WR38C |
| Inner Width | 18mm |
| 开口 T700重量 | 410±15g |
| 开口 T800 重量 | 385±10g |
| Clincher Ultralight | 365±10g |
| Clincher Superlight Weight | 345±10g |
| Tubeless | |
| Tubeless T700 Weight | 410±15g |
| Tubeless T800 重量 | 385±10g |
| Tubeless Ultralight Weight | 365±10g |
| Tubeless Superlight T1000 Weight | 345±10g |
| Tubular | |
| Tubular Model No. | WR38T |
| Tubular T700 重量 | 335±15g |
| Tubular T800 重量 | 305±15g |
| 产品特点 | |
| 最大辐条张力 | 135kgf/298lbs |
| 骑行者体重限制 | 120-135kgf |
| 最大胎压 | Hooked:120pis/8.27bar |
| 建议胎宽 | 23mm-28mm |
About rim Weight:
- The Ultra-Light T800 and Super-Light T1000 versions are available only with a unidirectional (UD) weave.
- Super-Light T1000 rim rider weigth limited 90kg.
- If you opt for a 3K or other carbon fibre weave, the weight of each wheel will increase by 15–20 grams.
- If you choose a basalt brake surface, the weight of each wheel will increase by 10–15 grams.
Bicycle Wheel Weight Calculator
Note:
We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.
If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.
