- Model: EC50TR / EC50T
可用的选项
Click: Order Option " Customize Wheelset ", and choose the hub and spokes, you will find the price for 1 pair complete wheelset.
Rim Shape
T700 Normal Weight Version: 100% Toray T700 Carbon Fiber.
T800 LightWeight Version: Mix 70% Toray T700 and 30% T800 Carbon Fiber.
Ultralight Version: 100% T800 Carbon Fiber. Rider Weight Limited 90kg, UD Paintless Weave Only. Rim Brake Version Weight Will Incrase by 10g.
Superlight T1000 Version: Mix 70% Toray T800 and 30% T1000 Carbon Fiber. No Rider Weight Limited, UD Paintless Weave Only.Rim Brake Version Weight Will Increase by 10g.
Note: Ultralight / Superlight weight is for UD Paintless only, 3K/12K/Marble weight increases 10 g- 15 g .
Note : If you want make Inner Nipple Wheel Must choose Have Rim Groove Hole
注：无轮圈槽孔，轮圈无须贴胶带，可减轻轮组重量。
If you want make Inner Nipple Wheel Must choose Have Rim Groove Hole
“A” 位于阀孔对面
Custom Logo
Please contact with us to check the design and cost [email protected]
"FLASH" Logo
"CarbonBikeKits" Valve sticker only
Related
产品规格

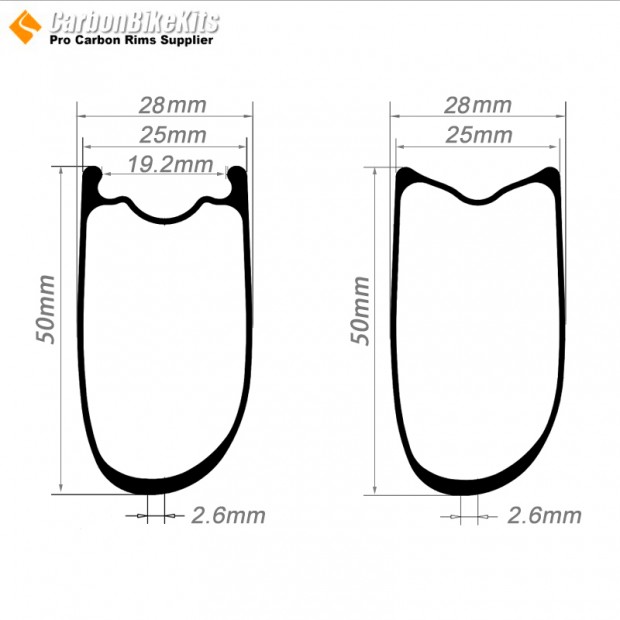

| Rim | |
| 材 料 | Toray Carbon T700 / T800 |
| Outer Width | 25mm |
| Hight | 50mm |
| ERD | 539mm |
| Clincher | |
| Inner Width | 19.2mm |
| Tubeless | |
| Tubeless Model No. | EC50TR |
| Inner Width | 19.2mm |
| Tubeless T700 Weight | 460±15g |
| Tubeless T800 重量 | 430±15g |
| Tubeless Ultralight Weight | 400±15g |
| Tubeless Superlight T1000 Weight | 340±15g |
| Tubular | |
| Tubular Model No. | EC50T |
| Tubular T700 重量 | 380±15g |
| Tubular T800 重量 | 360±15g |
| 产品特点 | |
| 最大辐条张力 | 120-135kgf |
| 骑行者体重限制 | 100-115kgf,ultralight 90kgf |
| 最大胎压 | 120pis/8.27bar |
| 建议胎宽 | 25mm-32mm |
About rim Weight:
- The Ultra-Light T800 and Super-Light T1000 versions are available only with a unidirectional (UD) weave.
- Super-Light T1000 rim rider weigth limited 90kg.
- If you opt for a 3K or other carbon fibre weave, the weight of each wheel will increase by 15–20 grams.
- If you choose a basalt brake surface, the weight of each wheel will increase by 10–15 grams.
Note:
We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.
If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.
Bicycle Wheel Weight Calculator
After selecting the rims,hub,and spokes, the weight information is listed below the table.wheelset use other hub and spokes ,you can check the weight with [email protected]
| Rim | Hub | Spokes |
| 50x25mm Tubeless T700 | Rim Brake:J-bend Powerway R13 | Pillar 1423 Steel Flat Spokes (6.5g/pcs) |
| 50x25mm Tubeless T800 | Rim Brake:Powerway R36 | Pillar 1420 Steel Flat Spokes (4.5g/pcs) |
| 50x25mm Tubeless Ultralight | Rim Brake:RAT-HUB04 | Sapim CX-ray Spokes (4.25g/pcs) |
| 50x25mm Tubeless SuperlightT1000 | Rim Brake:Ultralight RAT-HUB05 | Carbon Spokes:CSK01/CSK02 Just for HUB(RAT-HUB-C1,RAT-HUB-C2) 3g/pcs |
| 50x25mm Tubular T700 | Rim Brake:J-bend RAT-HUB06 | Carbon Spokes:CSK03 (3.6g/pcs) |
| 50x25mm Tubular T800 | Rim Brake:DTswiss180 | Carbon Spokes:CSK04 (2.6g/pcs) |
| Rim Brake:DTswiss240 | Ultralight Carbon Spokes:CSK05 (2g/pcs) | |
| Rim Brake:DTswiss350 | Unlimited Spokes:CSK06 (3.6g/pcs) | |
| Rim Brake:Chris King R45 | ||
| Rim Brake:RAT-HUB-C2( for Spokes CSK01/CSK02) | ||
| Disc Brake:Novatec 791/792 | ||
| Disc Brake:Novatec 411/412 | ||
| Disc Brake:RAT-HUB02 | ||
| Disc Brake:Ultralight RAT-HUB11 | ||
| Disc Brake:DTswiss180 | ||
| Disc Brake:DTswiss240 | ||
| Disc Brake:DTswiss350 | ||
| Chris King D45 | ||
| Disc Brake:RAT-HUB-C1( for Spokes CSK01/CSK02) |
