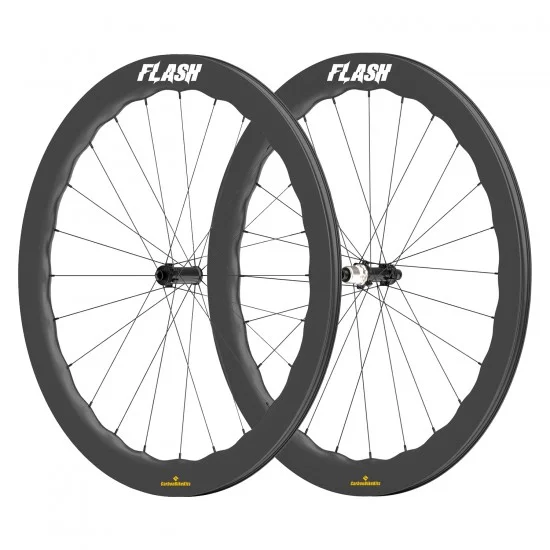

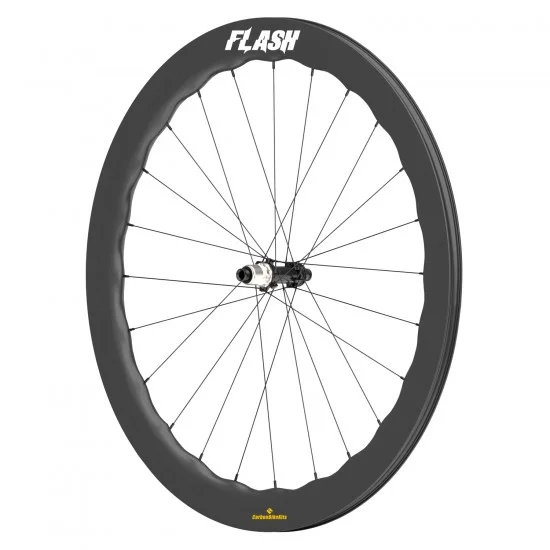

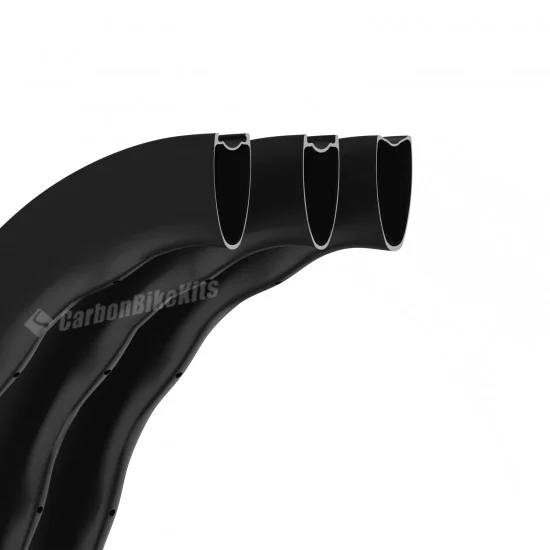

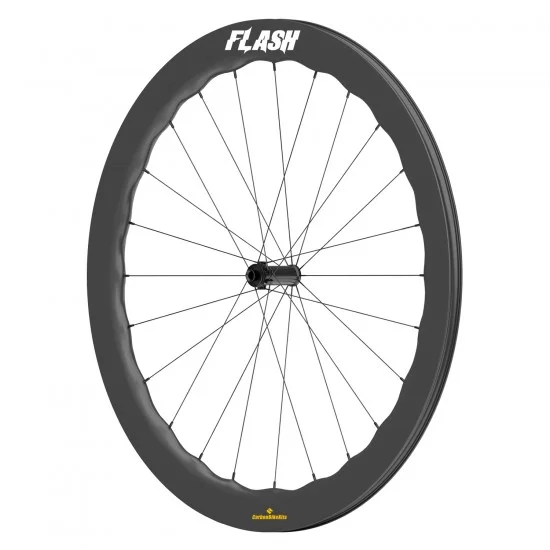

Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim

Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
Rim

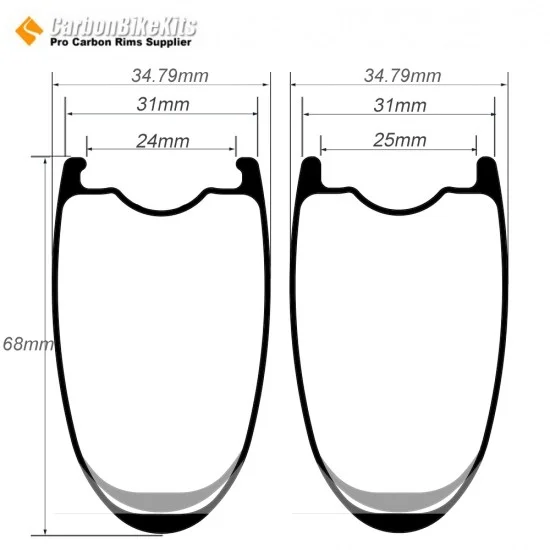

Material Toray Carbon T700 / T800
Outer Width 31mm
Hight 68mm
ERD 503mm
Tubeless
Tubeless Model No. WA68C-31
Inner Width 24mm
Tubeless T700 Weight 560±15g
Tubeless T800 Weight 520±15g
Tubeless Ultralight Weight 480±15g
Tubeless Superlight T1000 Weight 460±15g
Tubeless-Hookless
Inner Width 25mm
Feature
Max Spoke Tension 120-135kgf
Rider Weight Limit Standard 135kg/298lbs, Ultralight Version 90kg/198lbs
Max Tire Pressure Hooked 110PSI/7.58bar,Hookless 75PSI/5.17bar
Recommended Tire Width 28mm-38mm
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
  • Model: WA68C-31 / WA68C-31H
  • Package Weight:
4 reviews - Write a review
Select product option

Available Options

Add to Cart
Buy Now
Add to Wish List Compare this Product
Download Rim Catalog
Whatsapp

Related

340g Ultralight 700C 35x31mm Wavy Carbon Tubeless Gravel / CX Rim
340g Ultralight 700C 35x31mm Wavy Carbon Tubeless Gravel / CX Rim
$165.00
Add to Cart Add to Wish List Compare this Product
360g Ultralight 700C 45x31mm Wavy Shape Carbon Tubeless Gravel / CX Rim
360g Ultralight 700C 45x31mm Wavy Shape Carbon Tubeless Gravel / CX Rim
$170.00
Add to Cart Add to Wish List Compare this Product

About rim Weight:

  • The Ultra-Light T800 and Super-Light T1000 versions are available only with a unidirectional (UD) weave.
  • Super-Light T1000 rim rider weigth limited 90kg.
  • If you opt for a 3K or other carbon fibre weave, the weight of each wheel will increase by 15–20 grams.
  • If you choose a basalt brake surface, the weight of each wheel will increase by 10–15 grams.

Feature:

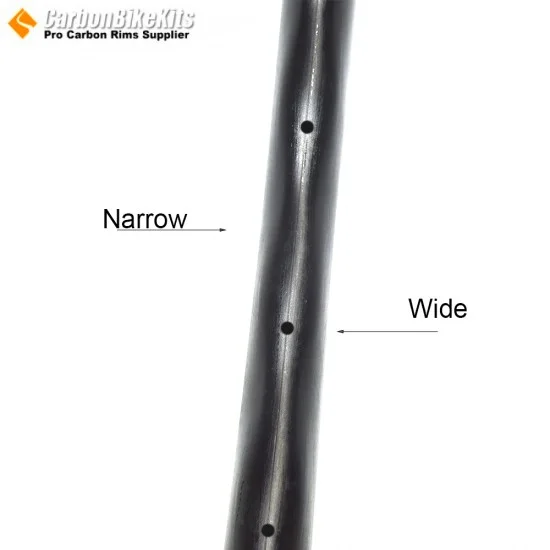

The size of " Hole-Center Distance" can be customized .

For other normal rim the " Hole-Center Distance" is 0-0.5mm.

This 31mm Aero Rim can make more large" Hole-Center Distance"  to fit different hub.let the wheels spoke tesnion is nore unifon.

Drive Side 0-1.0mm.

Non Drive Side 0-1.5mm.

Default is 0.5mm.



Bicycle Wheel Weight Calculator

Note:

We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.

If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.

Bicycle Wheel Weight Calculator

After selecting the rims,hub,and spokes, the weight information is listed below the table.wheelset use other hub and spokes ,you can check the weight with sales@carbonbikekits.com

Rim Hub Spokes
 68x31mm Tubeless T700 Disc Brake:Novatec 791/792 Pillar 1423 Steel Flat Spokes (6.5g/pcs)
 68x31mm Tubeless T800 Disc Brake:Novatec 411/412 Pillar 1420 Steel Flat Spokes (4.5g/pcs)
 68x31mm Tubeless Ultralight T800 Disc Brake:RAT-HUB02 Sapim CX-ray Spokes (4.25g/pcs)
 68x31mm Tubeless Super-Light T1000 Disc Brake:Ultralight RAT-HUB11 Carbon Spokes:CSK01/CSK02 Just for HUB(RAT-HUB-C1,RAT-HUB-C2) 3g/pcs
  Disc Brake:DTswiss180 Carbon Spokes:CSK03 (3.6g/pcs)
  Disc Brake:DTswiss240 Carbon Spokes:CSK04 (2.6g/pcs)
  Disc Brake:DTswiss350 Ultralight Carbon Spokes:CSK05 (2g/pcs)
  Disc Brake:Chris King R45 Unlimited Spokes:CSK06 (3.6g/pcs)
Result: 0
