Rim | |
Material | Toray Carbon T700 / T800 |
Outer Width | 25mm |
Hight | 45mm |
ERD | 551mm |
Clincher | |
Clincher Model No. | WR45C |
Clincher T700 Peso | 440±15g |
Inner Width | 18mm |
Clincher T800 Peso | 395±15g |
Clincher Ultralight | 375±10g |
Clincher Superlight Weight | 355±10g |
Tubeless | |
Tubeless T700 Weight | 440±15g |
Tubeless T800 Peso | 395±15g |
Tubeless Ultralight Weight | 375±10g |
Tubeless Superlight T1000 Weight | 355±10g |
Tubular | |
Tubular Model No. | WR45T |
Tubular T700 Peso | 350±15g |
Tubular T800 Peso | 325±15g |
Feature | |
Max Spoke Tension | 135kgf/298lbs |
Límite de peso del ciclista | 120-135kgf |
Max Tire Pressure | Hooked:120pis/8.27bar, Hookless 75psi/5.17bar |
Recommended Tire Width | 23mm-28mm |
- Model: WR45C / WR45T / TRU45C
Opciones Disponibles
Haz clic en: opción "Personalizar el conjunto de ruedas", elige el buje y los radios, y encontrarás el precio para un juego completo de ruedas.

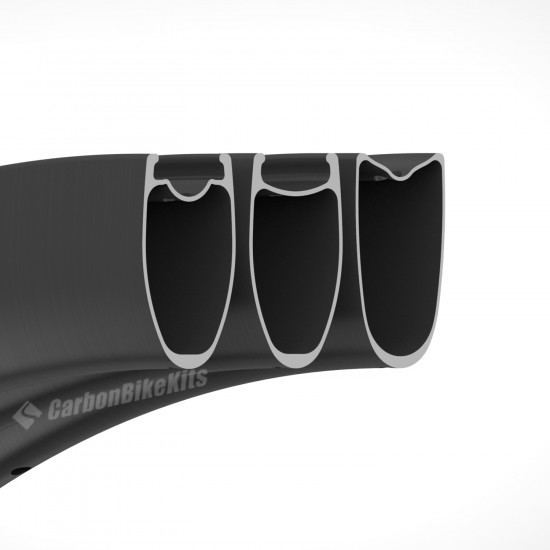

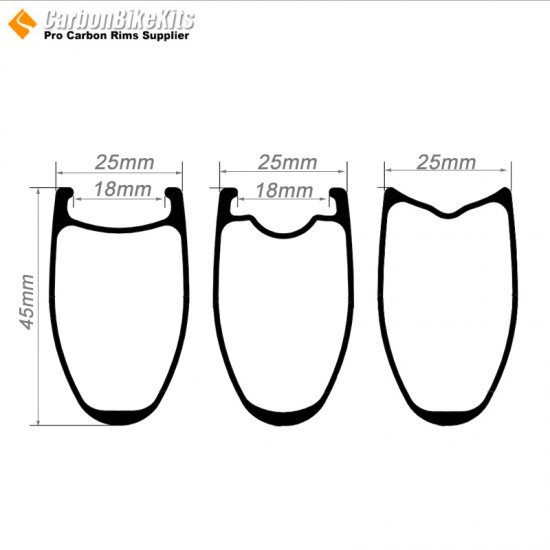

Rim Shape
T700 Normal Weight Version: 100% Toray T700 Carbon Fiber.
T800 LightWeight Version: Mix 70% Toray T700 and 30% T800 Carbon Fiber.
Ultralight Version: 100% T800 Carbon Fiber. Rider Weight Limited 90kg, UD Paintless Weave Only. Rim Brake Version Weight Will Incrase by 10g.
Superlight T1000 Version: Mix 70% Toray T800 and 30% T1000 Carbon Fiber. No Rider Weight Limited, UD Paintless Weave Only.Rim Brake Version Weight Will Increase by 10g.
Note: Ultralight / Superlight weight is for UD Paintless only, 3K/12K/Marble weight increases 10 g- 15 g .
Note : If you want make Inner Nipple Wheel Must choose Have Rim Groove Hole
Nota: Sin agujeros en la ranura del aro, no es necesario usar cintas.
If you want make Inner Nipple Wheel Must choose Have Rim Groove Hole
"A" está opuesto al orificio de la válvula.
Felgenbremsen haben eine Bremsfläche, Scheibenbremsen haben keine Bremsfläche.
Custom Logo
Por favor, contáctanos para verificar el diseño y el costo: sales@carbonbikekits.com
"FLASH" Logo
"CarbonBikeKits" Valve sticker only
Related
Bicycle Wheel Weight Calculator
Note:
We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.
If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.
