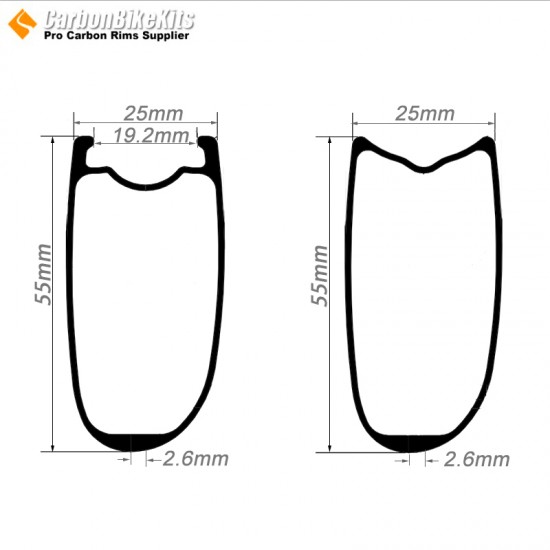

Rim | |
Material | Toray Carbon T700 / T800 |
Outer Width | 25mm |
Hight | 55mm |
ERD | 535mm |
Clincher | |
Inner Width | 19.2mm |
Tubeless | |
Tubeless Model No. | EC55TR |
Inner Width | 19.2mm |
Tubeless T800 Weight | 470±15g |
Tubeless T700 Weight | 510±15g |
Tubular | |
Tubular Model No. | EC55T |
Tubular T800 Weight | 370±15g |
Tubular T700 Weight | 410±15g |
Feature | |
Max Spoke Tension | 120-135psi |
Rider Weight Limit | 100-115kgf |
Max Tire Pressure | 120psi/8.27bar |
Recommended Tire Width | 21-38c |
Standard Rim Warranty:
From the date of purchase, enjoy a 3-year Standard Warranty.
Upgraded Rim Warranty:
From the date of purchase, opt for a 5-year Warranty or a Lifetime Premium Warranty with a minimal charge.
Crash Replacement:
Available throughout the same period as the warranty duration you selected for your rims, with a 15% discount.
- Model: EC55TR / EC55T
Available Options
Rim Shape
Note: Without Rim Groove Holes, The rim do not need use tapes.
"A" is Opposite the Valve Hole
Rim Brake Has Brake Surface. Disc Brake not Brake Surface.
Custom Logo
Please contact with us to check the design and cost sales@carbonbikekits.com
"FLASH" Logo
"CarbonBikeKits" Valve sticker only
Click: Order Option " Customize Wheelset ", and choose the hub and spokes, you will find the price for 1 pair complete wheelset.
Note:
We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.
If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.
Bicycle Wheel Weight Calculator
After selecting the rims,hub,and spokes, the weight information is listed below the table.wheelset use other hub and spokes ,you can check the weight with sales@carbonbikekits.com
Rim | Hub | Spokes |
55x25mm Tubeless T700 | Rim Brake:J-bend Powerway R13 | Pillar 1423 Steel Flat Spokes (6.5g/pcs) |
55x25mm Tubeless T800 | Rim Brake:Powerway R36 | Pillar 1420 Steel Flat Spokes (4.5g/pcs) |
55x25mm Tubeless Ultralight | Rim Brake:RAT-HUB04 | Sapim CX-ray Spokes (4.25g/pcs) |
55x25mm Tubular T700 | Rim Brake:Ultralight RAT-HUB05 | Carbon Spokes:CSK01/CSK02 Just for HUB(RAT-HUB-C1,RAT-HUB-C2) 3g/pcs |
55x25mm Tubular T800 | Rim Brake:J-bend RAT-HUB06 | Carbon Spokes:CSK03 (3.6g/pcs) |
Rim Brake:DTswiss180 | Carbon Spokes:CSK04 (2.6g/pcs) | |
Rim Brake:DTswiss240 | Ultralight Carbon Spokes:CSK05 (2g/pcs) | |
Rim Brake:DTswiss350 | Unlimited Spokes:CSK06 (3.6g/pcs) | |
Rim Brake:Chris King R45 | ||
Rim Brake:RAT-HUB-C2( for Spokes CSK01/CSK02) | ||
Disc Brake:Novatec 791/792 | ||
Disc Brake:Novatec 411/412 | ||
Disc Brake:RAT-HUB02 | ||
Disc Brake:Ultralight RAT-HUB11 | ||
Disc Brake:DTswiss180 | ||
Disc Brake:DTswiss240 | ||
Disc Brake:DTswiss350 | ||
Chris King D45 | ||
Disc Brake:RAT-HUB-C1( for Spokes CSK01/CSK02) |
