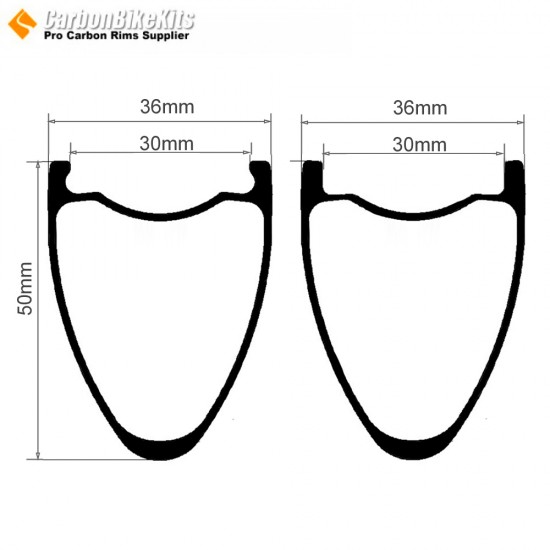

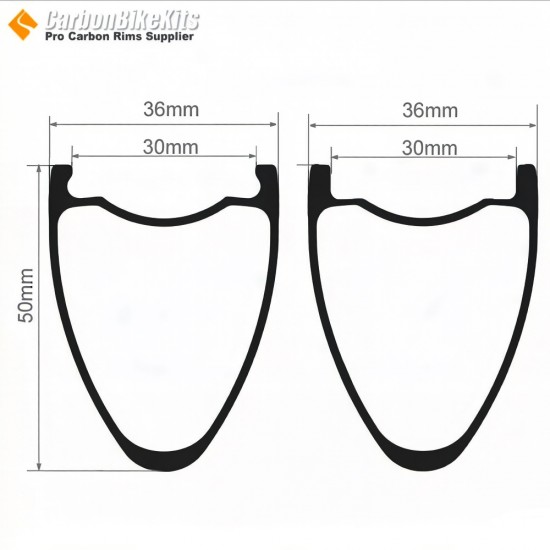

Rim | |
Material | Toray Carbon T700 / T800 |
Outer Width | 36mm |
Hight | 50mm |
ERD | 539mm |
Tubeless | |
Tubeless Model No. | TRU50-36 |
Inner Width | 30mm |
Tubeless T800 Weight | 455±15g |
Tubeless T700 Weight | 495±15g |
700C | |
Tubeless Ultralight Weight (Disc Brake Only) | 390±15g (UD Paintless ) |
Feature | |
Compatible Tire Size | 32C~70C |
Standard Rim Warranty:
From the date of purchase, enjoy a 3-year Standard Warranty.
Upgraded Rim Warranty:
From the date of purchase, opt for a 5-year Warranty or a Lifetime Premium Warranty with a minimal charge.
Crash Replacement:
Available throughout the same period as the warranty duration you selected for your rims, with a 15% discount.
- Model: TRU50-36
Available Options
Rim Shape
Note: Without Rim Groove Holes, The rim do not need use tapes.
"A" is Opposite the Valve Hole
Rim Brake Has Brake Surface. Disc Brake not Brake Surface.
Custom Logo
Please contact with us to check the design and cost sales@carbonbikekits.com
"FLASH" Logo
"CarbonBikeKits" Valve sticker only
Click: Order Option " Customize Wheelset ", and choose the hub and spokes, you will find the price for 1 pair complete wheelset.
Feature:
- Use big size tire, the gravel bicycle will more stable when riding.
- Big width let the air around the rear wheels can generate greater downward pressure,This means better grip can be obtained
- also can use for beach racers and their demanding sandy terrain
Note:
We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.
If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.
Bicycle Wheel Weight Calculator
After selecting the rims,hub,and spokes, the weight information is listed below the table.
Rim | Hub | Spokes |
50x36mm Tubeless T700 | Disc Brake:Novatec 791/792 | Pillar 1423 Steel Flat Spokes (6.5g/pcs) |
50x36mm Tubeless T800 | Disc Brake:Novatec 411/412 | Pillar 1420 Steel Flat Spokes (4.5g/pcs) |
50x36mm Tubeless Ultralight | Disc Brake:RAT-HUB02 | Sapim CX-ray Spokes (4.25g/pcs) |
Disc Brake:Ultralight RAT-HUB11 | Carbon Spokes:CSK01/CSK02 Just for HUB(RAT-HUB-C1,RAT-HUB-C2) 3g/pcs | |
Disc Brake:DTswiss180 | Carbon Spokes:CSK03 (3.6g/pcs) | |
Disc Brake:DTswiss240 | Carbon Spokes:CSK04 (2.6g/pcs) | |
Disc Brake:DTswiss350 | Ultralight Carbon Spokes:CSK05 (2g/pcs) | |
Disc Brake:Chris King R45 | Unlimited Spokes:CSK06 (3.6g/pcs) | |
Disc Brake:RAT-HUB-C1( for Spokes CSK01/CSK02) |
