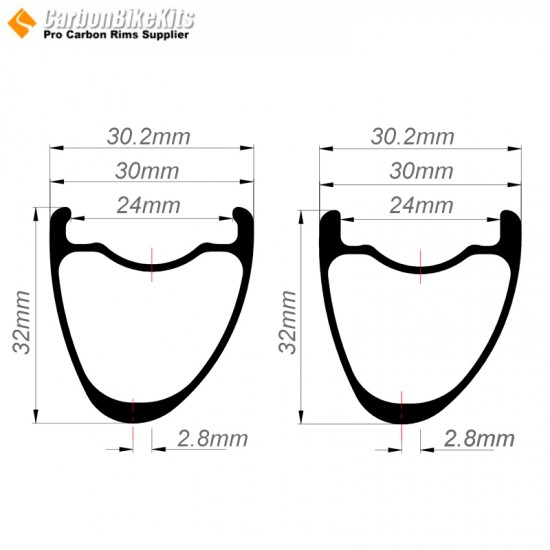

Rim | |
Material | Toray Carbon T700 / T800 |
Outer Width | 30mm |
Hight | 32mm |
ERD | 576mm |
Tubeless | |
Tubeless Model No. | EC32C-30 |
Inner Width | 24mm |
Tubeless T800 Weight | 360±15g |
Tubeless T700 Weight | 415±15g |
Tubeless-Hookless | |
Tubeless-Hookless Model No. | EC32C-30H |
Inner Width | 24mm |
Tubeless-Hookless T800 Weight | 360±15g |
Tubeless-Hookless T700 Weight | 415±15g |
Feature | |
Max Spoke Tension | 120-135kgf |
Rider Weight Limit | Standard 135kg/298lbs, |
Max Tire Pressure | Hooked 110PSI/7.58bar,Hookless 65PSI/4.48bar |
Recommended Tire Width | 28-50C |
Standard Rim Warranty:
From the date of purchase, enjoy a 3-year Standard Warranty.
Upgraded Rim Warranty:
From the date of purchase, opt for a 5-year Warranty or a Lifetime Premium Warranty with a minimal charge.
Crash Replacement:
Available throughout the same period as the warranty duration you selected for your rims, with a 15% discount.
- Model: EC32C-30 / EC32C-30H
Available Options
Rim Shape
Note: Without Rim Groove Holes, The rim do not need use tapes.
"A" is Opposite the Valve Hole
Rim Brake Has Brake Surface. Disc Brake not Brake Surface.
Custom Logo
Please contact with us to check the design and cost sales@carbonbikekits.com
"FLASH" Logo
"CarbonBikeKits" Valve sticker only
Click: Order Option " Customize Wheelset ", and choose the hub and spokes, you will find the price for 1 pair complete wheelset.
Bicycle Wheel Weight Calculator
Note:
We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.
If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.
