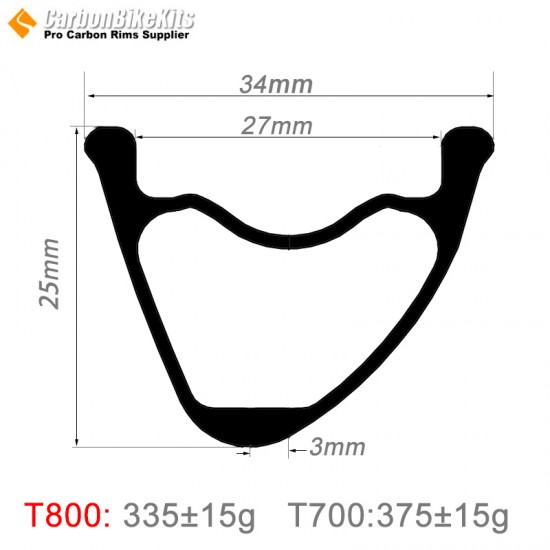

Rim | |
Material | Toray Carbon T700 / T800 |
Outer Width | 34mm |
Inner Width | 27mm |
Hight | 25mm |
29er | |
Model | EC29-34R |
ERD | 590mm |
Weight-XC | 335±15g |
Weight-AM | 375±15g |
Feature | |
Max Spoke Tension | 115-135kgf |
Rider Weight Limit | Standard 130kg/298lbs,Ultralight 90kg/198lbs |
Max Tire Pressure | 40PSI/2.75bar |
Recommended Tire Width | 2.1"-2.7" |
Standard Rim Warranty:
From the date of purchase, enjoy a 3-year Standard Warranty.
Upgraded Rim Warranty:
From the date of purchase, opt for a 5-year Warranty or a Lifetime Premium Warranty with a minimal charge.
Crash Replacement:
Available throughout the same period as the warranty duration you selected for your rims, with a 15% discount.
- Model: EC29-34R
Available Options
Rim Shape
"A" is Opposite the Valve Hole
Note: Without Rim Groove Holes, The rim do not need use tapes, you can reduce the weight for the wheelset.
Click: Order Option " assemble wheel ", and choose the hub and spokes, you will find the price for 1 pair complete wheelset.
Custom Logo
Please contact with us to check the design and cost sales@carbonbikekits.com
"FLASH" Logo
"CarbonBikeKits" Valve sticker only
Bicycle Wheel Weight Calculator
Note:
We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.
If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.
