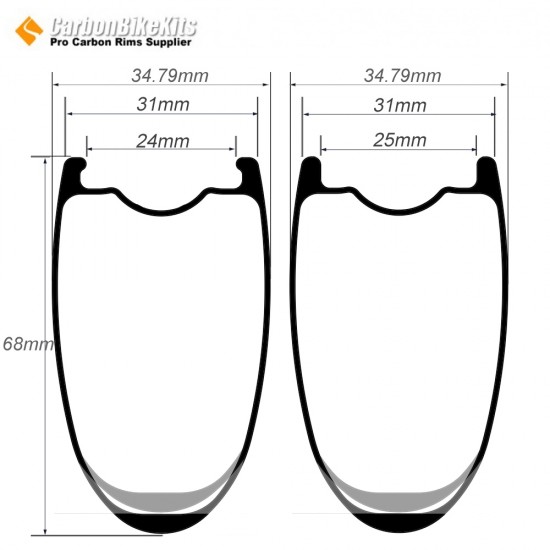

Rim
Material Toray Carbon T700 / T800
Outer Width 31mm
Hight 68mm
ERD 503mm
Tubeless
Tubeless Model No. WA68C-31
Inner Width 24mm
Tubeless T700 Weight 560±15g
Tubeless T800 Weight 520±15g
Tubeless Ultralight Weight 500±15g
Tubeless Superlight T1000 Weight 480±15g
Tubeless-Hookless
Tubeless-Hookless Model No. WA68C-31H
Inner Width 25mm
Tubeless-Hookless T700 Weight 560±15g
Tubeless-Hookless T800 Weight 520±15g
Feature
Max Spoke Tension 120-135kgf
Rider Weight Limit Standard 135kg/298lbs, Ultralight Version 90kg/198lbs
Max Tire Pressure Hooked 110PSI/7.58bar,Hookless 75PSI/5.17bar
Recommended Tire Width 28mm-38mm
Wave Shape 700C 68x31mm Carbon Tubeless Hooked/Hookless/Tubular Road Bike Rim
  • Model: WA68C-31 / WA68C-31H
0 évaluation(s) - Donnez votre avis
$175,00

Options disponibles

Ajouter au panier
Buy Now
Ajouter à la liste de souhaits Comparer ce produit
Download Rim Catalog
Whatsapp

Related

325g Ultralight 700C 35x31mm Wavy Carbon Tubeless Gravel / CX Rim
325g Ultralight 700C 35x31mm Wavy Carbon Tubeless Gravel / CX Rim
$165,00
Ajouter au panier Ajouter à la liste de souhaits Comparer ce produit
365g Ultralight 700C 45x31mm Wavy Shape Carbon Tubeless Gravel / CX Rim
365g Ultralight 700C 45x31mm Wavy Shape Carbon Tubeless Gravel / CX Rim
$170,00
Ajouter au panier Ajouter à la liste de souhaits Comparer ce produit

The size of " Hole-Center Distance" can be customized .

For other normal rim the " Hole-Center Distance" is 0-0.5mm.

This 31mm Aero Rim can make more large" Hole-Center Distance"  to fit different hub.let the wheels spoke tesnion is nore unifon.

Drive Side 0-1.0mm.

Non Drive Side 0-1.5mm.

Default is 0.5mm.



Bicycle Wheel Weight Calculator

Note:

We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.

If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.

Bicycle Wheel Weight Calculator

After selecting the rims,hub,and spokes, the weight information is listed below the table.wheelset use other hub and spokes ,you can check the weight with sales@carbonbikekits.com

Rim Hub Spokes
 68x31mm Tubeless T700 Disc Brake:Novatec 791/792 Pillar 1423 Steel Flat Spokes (6.5g/pcs)
 68x31mm Tubeless T800 Disc Brake:Novatec 411/412 Pillar 1420 Steel Flat Spokes (4.5g/pcs)
 68x31mm Tubeless Ultralight T800 Disc Brake:RAT-HUB02 Sapim CX-ray Spokes (4.25g/pcs)
 68x31mm Tubeless Ultralight T1000 Disc Brake:Ultralight RAT-HUB11 Carbon Spokes:CSK01/CSK02 Just for HUB(RAT-HUB-C1,RAT-HUB-C2) 3g/pcs
  Disc Brake:DTswiss180 Carbon Spokes:CSK03 (3.6g/pcs)
  Disc Brake:DTswiss240 Carbon Spokes:CSK04 (2.6g/pcs)
  Disc Brake:DTswiss350 Ultralight Carbon Spokes:CSK05 (2g/pcs)
  Disc Brake:Chris King R45 Unlimited Spokes:CSK06 (3.6g/pcs)
Result: 0
