| Rim | |
| Material | Toray Carbon T700 / T800 |
| Outer Width | 40mm |
| Hight | 52mm |
| ERD | 600mm |
| Tubeless | |
| Tubeless Model No. | 32ER-52-40 |
| Inner Width | 32mm |
| Tubeless T700 Weight | 530±15g |
| Tubeless T800 Gewicht | 490±15g |
| Tubeless Superlight T1000 Weight | 450±15g |
| Feature | |
| Max Spoke Tension | 120-135kgf |
| Fahrergewichtsbeschränkung | Standard 135kg/298lbs,Ultralight 90kg/198lbs, |
| Max Tire Pressure | Hooked 80PSI/5.52bar,Hookless 65PSI/4.48bar |
| Recommended Tire Width | 38mm-50mm |
- Model: 32ER-52-40
- Weight: 0.00 kg
Mögliche Optionen
Klicken Sie auf: "Radset anpassen" und wählen Sie die Nabe und Speichen aus, um den Preis für einen kompletten Laufradsatz zu sehen.

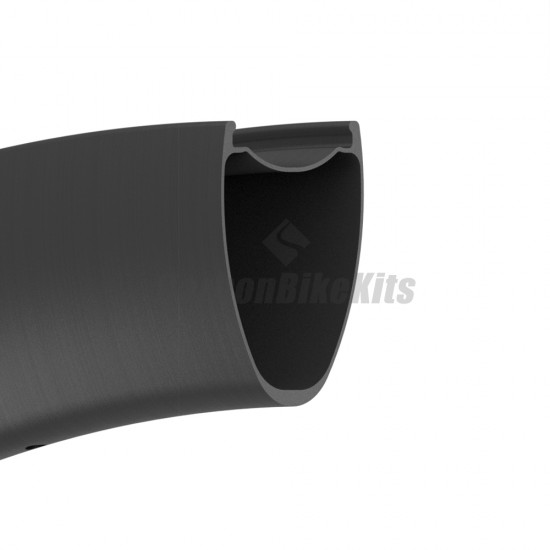

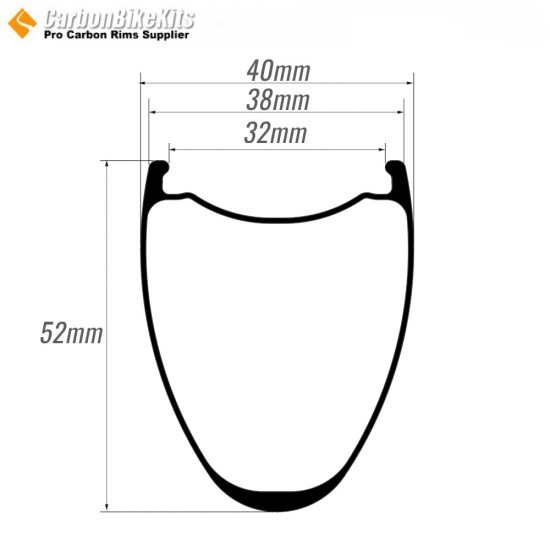

Rim Shape
T700 Normal Weight Version: 100% Toray T700 Carbon Fiber.
T800 LightWeight Version: Mix 70% Toray T700 and 30% T800 Carbon Fiber.
Ultralight Version: 100% T800 Carbon Fiber. Rider Weight Limited 90kg, UD Paintless Weave Only. Rim Brake Version Weight Will Incrase by 10g.
Superlight T1000 Version: Mix 70% Toray T800 and 30% T1000 Carbon Fiber. No Rider Weight Limited, UD Paintless Weave Only.Rim Brake Version Weight Will Increase by 10g.
Note: Ultralight / Superlight weight is for UD Paintless only, 3K/12K/Marble weight increases 10 g- 15 g .
Note : If you want make Inner Nipple Wheel Must choose Have Rim Groove Hole
Hinweis: Ohne Felgennutlöcher benötigt die Felge kein Klebeband.
If you want make Inner Nipple Wheel Must choose Have Rim Groove Hole
"A" befindet sich gegenüber dem Ventilloch.
Rim Brake Has Brake Surface. Disc Brake not Brake Surface.
Custom Logo
Bitte kontaktieren Sie uns, um das Design und die Kosten zu überprüfen: [email protected]
"FLASH" Logo
"CarbonBikeKits" Valve sticker only
Note:
We provide custom assembly wheels building service because have many configurations, so the weight of the wheels need be calculated.
If you need lightweight wheels, please choose lightweight rims, hubs, and spokes.
Bicycle Wheel Weight Calculator
After selecting the rims,hub,and spokes, the weight information is listed below the table.wheelset use other hub and spokes ,you can check the weight with [email protected]
| Rim | Hub | Spokes |
| 52x40mm Tubeless T700 | Disc Brake:Novatec 791/792 | Pillar 1423 Steel Flat Spokes (6.5g/pcs) |
| 52x40mm Tubeless T800 | Disc Brake:Novatec 411/412 | Pillar 1420 Steel Flat Spokes (4.5g/pcs) |
| 52x40mm Tubeless Ultralight T1000 | Disc Brake:RAT-HUB02 | Sapim CX-ray Spokes (4.25g/pcs) |
| Disc Brake:Ultralight RAT-HUB11 | Carbon Spokes:CSK01/CSK02 Just for HUB(RAT-HUB-C1,RAT-HUB-C2) 3g/pcs | |
| Disc Brake:DTswiss180 | Carbon Spokes:CSK03 (3.6g/pcs) | |
| Disc Brake:DTswiss240 | Carbon Spokes:CSK04 (2.6g/pcs) | |
| Disc Brake:DTswiss350 | Ultralight Carbon Spokes:CSK05 (2g/pcs) | |
| Disc Brake:Chris King R45 | Unlimited Spokes:CSK06 (3.6g/pcs) | |
| Disc Brake:RAT-HUB-C1( for Spokes CSK01/CSK02) |
